Surface Mount
Part Number Description Certification Specification

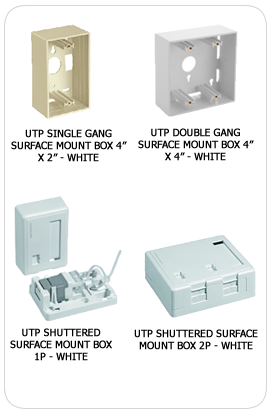

35060042 UTP SINGLE GANG SURFACE MOUNT BOX 4" X 2" - WHITE ISO 9001, ISO14001
RoHS Compliant,UL Listed
35060050 UTP DOUBLE GANG SURFACE MOUNT BOX 4" X 4" - WHITE  ISO 9001, ISO14001
RoHS Compliant,UL Listed
35050255 UTP SHUTTERED SURFACE MOUNT BOX 1P - WHITE ISO 9001, ISO14001
RoHS Compliant,UL Listed
35050258 UTP SHUTTERED SURFACE MOUNT BOX 2P - WHITE ISO 9001, ISO14001
RoHS Compliant,UL Listed

General Characteristics

Product Type

TELECOMMUNICATION INFRASTRUCTURE ACCESSORY

Product Family

FISACESSO

Standard

RoHS Compliant

Installation Environment I

Indoor

Operation Environment

Indoor non agressive

Compatibility

All the products of FISACESSO line.

Material of Product body

Thermoplastic High Impact ABS

Color gray, beige, white.
Certifications UL Listed E173971
Advantage Compatible with Furukawa 4"x2" or 4"x4" modular faceplates.
Combining design, technology and functionality.
Modules that allow various combinations, fitting perfectly the most
complicated needs.
Compatible with Cat 5e, Cat 6 and Cat 6A connectors on U / UTP or F / UTP
versions.
Compatible with adapters set of type SC Simplex or Duplex, ST, FJ, LC,
Coaxial, Type F or RCA audio.

Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
