1. Outdoor : All-Dielectric Seft-Supporting (ADSS)
Part Number Description Packing Color Certification Specification
  OS2 (Single Mode)     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
64720006 OUTDOOR OFC-ADSS-6F SM (9/125) LOOSE TUBE-BLACK 2,000 M
64720012 OUTDOOR OFC-ADSS-12F SM (9/125) LOOSE TUBE-BLACK 2,000 M
64720024 OUTDOOR OFC-ADSS-24F SM (9/125) LOOSE TUBE-BLACK 2,000 M
64720048 OUTDOOR OFC-ADSS-48F SM (9/125) LOOSE TUBE-BLACK
(Made by Order)
2,000 M

  OM2 (Multimode Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74050006 OUTDOOR OFC-ADSS-6F MM (OM2) LOOSE TUBE-BLACK 2,000 M
74050012 OUTDOOR OFC-ADSS-12F MM (OM2) LOOSE TUBE-BLACK 2,000 M
74050024 OUTDOOR OFC-ADSS-24F MM (OM2) LOOSE TUBE-BLACK 2,000 M
  OM3 (Multimode Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74060006 OUTDOOR OFC-ADSS-6F MM (OM3) LOOSE TUBE-BLACK 2,000 M
74060012 OUTDOOR OFC-ADSS-12F MM (OM3) LOOSE TUBE-BLACK 2,000 M
74060024 OUTDOOR OFC-ADSS-24F MM (OM3) LOOSE TUBE-BLACK 2,000 M

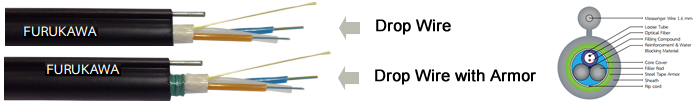

2. Outdoor : Drop Wire (DW)

Part Number Description Packing Color Certification Specification
  OS2 (Single Mode)     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
64740006 OUTDOOR OFC-DW-6F SM (9/125) LOOSE TUBE-BLACK (TWISTED) 2,000 M
64740012 OUTDOOR OFC-DW-12F SM (9/125) LOOSE TUBE-BLACK (TWISTED) 2,000 M
64750006 OUTDOOR OFC-DW-6F SM (9/125) LOOSE TUBE-BLACK
(TWISTED-ARMOR)
2,000 M TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
64750012
OUTDOOR OFC-DW-12F SM (9/125) LOOSE TUBE-BLACK
(TWISTED-ARMOR)
2,000 M

  OM2 (Multi Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74550006 OUTDOOR OFC-DW-6F MM (OM2) LOOSE TUBE-BLACK (TWISTED) 2,000 M
74550006 OUTDOOR OFC-DW-12F MM (OM2) LOOSE TUBE-BLACK (TWISTED) 2,000 M
74600006
OUTDOOR OFC-DW-6F SM (OM2) LOOSE TUBE-BLACK
(TWISTED-ARMOR)
2,000 M TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74600012
OUTDOOR OFC-DW-12F SM (OM2) LOOSE TUBE-BLACK
(TWISTED-ARMOR)
2,000 M

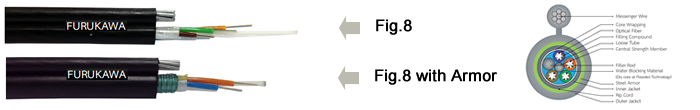

3. Outdoor : Fig.8
Part Number Description Packing Color Certification Specification
  OS2 (Single Mode)     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
63130012 OUTDOOR OFC-FIG.8-12F SM (9/125) 2,000 M
63130024 OUTDOOR OFC-FIG.8-24F SM (9/125) 2,000 M
63130048 OUTDOOR OFC-FIG.8-48F SM (9/125)
(Made by Order)
2,000 M
63140012 OUTDOOR OFC-FIG.8-12F SM (9/125) (SINGLE JACKET ARMOR) 2,000 M TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
63140024 OUTDOOR OFC-FIG.8-24F SM (9/125) (SINGLE JACKET ARMOR) 2,000 M
63140048 OUTDOOR OFC-FIG.8-48F SM (9/125) (SINGLE JACKET ARMOR)
2,000 M

  OM2 (Multi Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
63460012 OUTDOOR OFC-DW-FIG.8-12F MM (OM2) 2,000 M
63460024 OUTDOOR OFC-DW-FIG.8-24F MM (OM2)
(Made by Order)
2,000 M
สั่งพิเศษ
OUTDOOR OFC-DW-FIG.8-12F MM (OM2)
(TWISTED-ARMOR)
2,000 M TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001

สั่งพิเศษ
OUTDOOR OFC-DW-FIG.8-24F MM (OM2)
(TWISTED-ARMOR)
2,000 M

4. Outdoor : Duct Cable (Duct)
Part Number Description Packing Color Certification Specification
  OS2 (Single Mode) - Made by Order     TIS 2165-2548
RoHS Compliant
ISO 9001
ISO14001
81190006 OUTDOOR OFC-DUCT-6F SM (9/125) 2,000 M
81190012 OUTDOOR OFC-DUCT-12F SM (9/125) 2,000 M
81190024 OUTDOOR OFC-DUCT-24F SM (9/125) 2,000 M
81190048 OUTDOOR OFC-DUCT-48F SM (9/125) 2,000 M

  OM2 (Multi Mode) - Made by Order     TIS 2165-2548
RoHS Compliant
ISO 9001
ISO14001
81200006 OUTDOOR OFC-DUCT-6F MM (OM2) 2,000 M
81200012 OUTDOOR OFC-DUCT-12F MM (OM2) 2,000 M
81200024 OUTDOOR OFC-DUCT-24F MM (OM2) 2,000 M
  OM3 (Multi Mode) - Made by Order     TIS 2165-2548
RoHS Compliant
ISO 9001
ISO14001
81210006 OUTDOOR OFC-DUCT-6F MM (OM3) 2,000 M
81210012 OUTDOOR OFC-DUCT-12F MM (OM3) 2,000 M
81210024 OUTDOOR OFC-DUCT-24F MM (OM3) 2,000 M

5. Outdoor : Direct Buried (DB)
Part Number Description Packing Color Certification Specification
  OS2 (Single Mode)     TIS 2165-2548
RoHS Compliant
ISO 9001
ISO14001
62720006 OUTDOOR OFC-DIRECT BURIED-6F SM (9/125)
(SINGLE JACKET ARMOR)
2,000 M
62720012 OUTDOOR OFC-DIRECT BURIED-12F SM (9/125)
(SINGLE JACKET ARMOR)
2,000 M
62720024 OUTDOOR OFC-DIRECT BURIED-24F SM (9/125)
(SINGLE JACKET ARMOR)
(Made by Order)
2,000 M
62720048 OUTDOOR OFC-DIRECT BURIED-48F SM (9/125)
(SINGLE JACKET ARMOR)
(Made by Order)
2,000 M

  OM2 (Multi Mode) - Made by Order     TIS 2165-2548
RoHS Compliant
ISO 9001
ISO14001
62730006
OUTDOOR OFC-DIRECT BURIED-6F MM (OM2)
(SINGLE JACKET ARMOR)
2,000 M
62730012
OUTDOOR OFC-DIRECT BURIED-12F MM (OM2)
(SINGLE JACKET ARMOR)
2,000 M
62730024
OUTDOOR OFC-DIRECT BURIED-24F MM (OM2)
(SINGLE JACKET ARMOR)
2,000 M
  OM3 (Multi Mode) - Made by Order     TIS 2165-2548
RoHS Compliant
ISO 9001
ISO14001
62740006
OUTDOOR OFC-DIRECT BURIED-6F MM (OM3)
(SINGLE JACKET ARMOR)
2,000 M
62740012
OUTDOOR OFC-DIRECT BURIED-12F MM (OM3)
(SINGLE JACKET ARMOR)
2,000 M
62740024
OUTDOOR OFC-DIRECT BURIED-24F MM (OM3)
(SINGLE JACKET ARMOR)
2,000 M

6. Outdoor : ANTI-RODENT SELF-SUPPORTING (ARSS)
Part Number Description Packing Color Certification Specification
  OS2 (Single Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74750006 OUTDOOR OFC-ARSS-6F SM (9/125)
2,000 M
74750012 OUTDOOR OFC-ARSS-12F SM (9/125)
2,000 M
74750024 OUTDOOR OFC-ARSS-24F SM (9/125)
2,000 M
74750048 OUTDOOR OFC-ARSS-48F SM (9/125)
2,000 M

  OM2 (Multi Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74760006 OUTDOOR OFC-ARSS-6F MM (OM2)
2,000 M
74760012 OUTDOOR OFC-ARSS-12F MM (OM2)
2,000 M
74760024 OUTDOOR OFC-ARSS-24F MM (OM2)
2,000 M
  OM3 (Multi Mode) - Made by Order     TIS 2166-2548
RoHS Compliant
ISO 9001
ISO14001
74770006 OUTDOOR OFC-ARSS-6F MM (OM3)
2,000 M
74770012 OUTDOOR OFC-ARSS-12F MM (OM3)
2,000 M
74770024 OUTDOOR OFC-ARSS-24F MM (OM3)
2,000 M


Technology Innovation and quality in certified and recognized products.

Optical Fibers


When it comes to long distance and transmission rate’s performance, optical cabling is the best. It is by far, a better choice than copper cabling. Installation of optical networks follow the same rules as those for buildings, datacenter or MDUs. The optical channel presented at the figure below is an example of performance measurement for any optical solution.




Aiming even higher transmission rates, different multimode fibers MM(50/125μm) were developed, such as OM3, OM4 and more recently OM5. These ibers are compatible with VCSEL, a semiconductor-based laser diode that allows higher taxes of transmission, within distances compatible with local networks. Among the fibers applied in critical environments or with high taxes of data transmission, OM5 should be highlighted, as it is the only one which bandwidth is characterized to be used with SWDW (Short Wavelength Division Multiplexing). The following table shows the performance of multimode optical fibers under the use of SWDM.




OM5 Multimode Fiber
The Wide band multimode optical fiber (WBMMF), optimized for SWDM application

The new generation of the 50 µm multimode fibers, known as OM5, comes to enlarge the performance from previous versions, allowing data traffic in rates such as 40G/100Gbps, for now. Besides being totally compatible with current application of Multimode fibers, the new model was developed in order to support and promote the use of SWDM, which operation and use is explained and depicted as it follows:


In order to establish minimum condition for performance of SWDM technology usage with multimode fibers, it is necessary to establish and determine the bandwidth necessity to transit all used wavelengths. The main differential of the OM5, when comparing with previous fibers, is this characterization.
Currently, the technology SWDM supports 4 wavelengths, that means an improvement of 4 times the transmission rate in face of conventional transmission. OM5 fiber is still under standardization phase, it is still awaiting for the creation of a norm, such as TIA- 942AAAE, to stablish specifications for its specific multimode optical fibers.


Single-Mode Fibers & Non-Zero Dispersion (NZD)

“Low Water Peak” (G.652.D) ---> Metropolitan and access networks.
It enables future expansion of the network for new users via CWDM in up to 16 channels. Fifty percent increase of the transmission capacity in relation to the conventional single-mode fibers. Low attenuation coefficient at the water absorption peak (1383±3 nm), assuring additional use of the E band (1360 to 1460 nm), as well as along the other transmission bands (1270 to 1610 nm)

“Bending Loss Insensitive” (G.657.A ---> FTTH Access networks (Fiber-To-The-Home) and local networks.
Low values of loss, due to curvature, along its entire transmission spectrum, from 1260 to 1625 nm. It allows bending at diameters up to 20 mm generating maximum loss of 0.5 dB at 1625nm and 0.2 dB at 1550 nm.
