CAT 6A Patch Cord ขนาด 24 AW
Part Number Description Color Type Certification Specification
35085074 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 1.0M - BLUE (SHIELDED) F/UTP

RoHS Compliant
ISO 9001, ISO14001
ETL 4 connections
ETL 3 connections
ETL Verified
ANATEL

35085032 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 1.0M - GRAY (SHIELDED)
35085069 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 2.0M - GRAY (SHIELDED)
35085120 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 2.0M - BLUE (SHIELDED)
35085075 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 3.0M - BLUE (SHIELDED)
35085016 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 3.0M - GRAY (SHIELDED)
35085012 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 5.0M - GRAY (SHIELDED)
35085146 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 5.0M - BLUE (SHIELDED)
35085030 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 10.0M - GRAY (SHIELDED)
35085019 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 10.0M - BLUE (SHIELDED)
35085078 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 15.0M - GRAY (SHIELDED)
35085096 F/UTP CAT.6A PATCH CORD - GIGALAN AUGMENTED - CM - T568A/B - 15.0M - BLUE (SHIELDED)

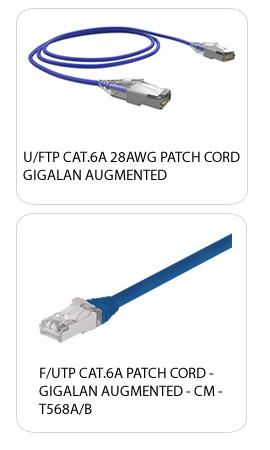

CAT 6A Patch Cord ขนาด 28 AWG (เส็นเล็ก)
Part Number Description Color Type Certification Specification
35083601 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 1.0M - BLUE U/FTP

RoHS Compliant
ISO 9001, ISO14001

35083301 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 1.0M - RED
35083602 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 1.5M - BLUE
35083302 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 1.5M - RED
35083603 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 2.0M - BLUE
35083303 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 2.0M - RED
35083604 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 2.5M - BLUE
35083304 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 2.5M - RED
35083605 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 3.0M - BLUE
35083305 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 3.0M - RED
35083607 U/FTP CAT.6A 28AWG COPPER PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 5.0M - BLUE
35083307 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 5.0M - RED
35083609 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 7.5M - BLUE
35083309 U/FTP CAT.6A 28AWG PATCH CORD GIGALAN AUGMENTED - LSZH - T568A/B - 7.5M - RED

* Other types of products are available upon request, please contact us.


General Characteristics

Category

6A

Bandwidth

500 Mhz

Application

1. Exceeds physical and electrical requirements ofANSI/TIA-568-C.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a)     10GIGABIT ETHERNET, IEEE 802.3an, 10 Gbps;
b)     GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
c)     100BASE-TX, IEEE 802.3u, 100 Mbps;
d)     100BASE-T4, IEEE 802.3u ,100 Mbps;
e)     100vg-AnyLAN, IEEE802.12, 100 Mbps;
f)      ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
g)     TP-PMD , ANSI X3T9.5, 100 Mbps;
h)     10BASE-T, IEEE802.3, 10 Mbps;
i)      TOKEN RING, IEEE802.5 , 4/16 Mbps;
j)      3X-AS400, IBM, 10 Mbps;
k)     Support POE+ (in accordance with IEEE 802.3at e TSB-184)
4. Solutions: Data Center, Commercial Building, Government, Financial, Health,
Education.

Type

F/UTP

Conductors

4 pairs, 23AWG

Flammability
grade

LSZH, CM, CMR

Certifications

ISO 9001, ISO14001,RoHS Compliant, CE, UL, ETL, Anatel

Standards Compliance TIA-568-C.2, ANSI/TIA/EIA-569, ISO/IEC DIS 11801, UL 444

Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
