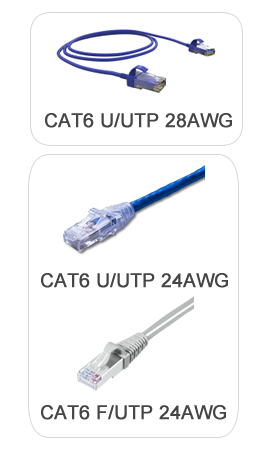

CAT 6 Patch Cord ขนาด 24 AWG
Part Number Description Color Certification Specification
35123601 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 1.0M - BLUE RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL 4 connections
ETL 6 connections
ETL Verified

35123301 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 1.0M - RED
35123801 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 1.0M - YELLOW
35123901 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 1.0M - GRAY
35123401 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 1.0M - GREEN
35123603 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 2.0M - BLUE
35123303 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 2.0M - RED
35123803 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 2.0M - YELLOW
35123903 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 2.0M - GRAY
35123403 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 2.0M - GREEN
35123605 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 3.0M - BLUE
35120296 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 3.0M - RED
35123805 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 3.0M - YELLOW
35123905 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 3.0M - GRAY
35123405 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 3.0M - GREEN
35123607 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 5.0M - BLUE
35123907 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 5.0M - GRAY
35123807 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 5.0M - YELLOW
35123307 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 5.0M - RED
35123612 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 10.0M - BLUE
35123412 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 10.0M - GREEN
35123615 U/UTP CAT.6 PATCH CORD - GIGALAN - CM - T568A/B - 20.0M - BLUE

CAT 6 Patch Cord เส้นเล็กขนาด 28 AWG
Part Number Description Color Certification Specification
35126601 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 1.0M - BLUE RoHS Compliant
ISO 9001, ISO14001

35126501 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 1.0M - WHITE
35126602 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 1.5M - BLUE
35126502 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 1.5M - WHITE
35126603 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 2.0M - BLUE
35126503 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 2.0M - WHITE
35126604 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 2.5M - BLUE
35126504 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 2.5M - WHITE
35126605 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 3.0M - BLUE
35126505 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 3.0M - WHITE
35126606 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 4.5M - BLUE
35126506 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 4.5M - WHITE
35126607 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 5.0M - BLUE
35126507 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 5.0M - WHITE
35126608 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 6.0M - BLUE
35126508 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 6.0M - WHITE
35126609 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 7.5M - BLUE
35126509 U/UTP CAT.6 28AWG PATCH CORD GIGALAN - LSZH - T568A/B - 7.5M - WHITE

General Characteristics

Category

6

Bandwidth

250 Mhz

Application

1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.

Type

UTP and FTP

Connector type

RJ-45

Assembly

Assembled and tested in factory

Contacts

Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications

UL Listed, ETL Verified and Channel

Color

Blue, Grey, Yellow, Beige, White, Orange, Brown, Black, Red, Green

Insertion cycles

≥750 RJ45


Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
