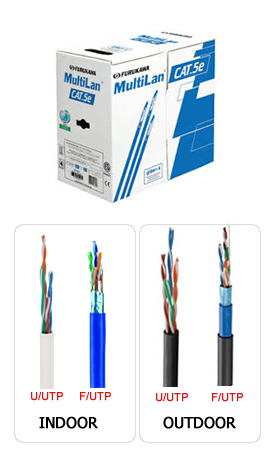

CAT 5E Cabling - Indoor
Part Number Description Color Specification Certification
23200248 DATA CABLE MULTILAN U/UTP CAT 5E 24AWGX4P CMR - WHITE, 305 METER/BOX RoHS Compliant
ISO 9001, ISO 14001
UL Listed, Verified
ETL Listed, Verified
ETL 4 Conections
Anatel
23200005 DATA CABLE MULTILAN U/UTP CAT 5E 24AWGX4P CMR - BLUE, 305 METER/BOX
23200056 DATA CABLE MULTILAN U/UTP CAT 5E 24AWGX4P CMR - YELLOW, 305 METER/BOX
23200149 DATA CABLE MULTILAN U/UTP CAT 5E 24AWGX4P CMR - GRAY, 305 METER/BOX
23200252 DATA CABLE MULTILAN U/UTP CAT 5E 24AWGX4P CMR - WHITE, 2000 METER/ROLL WOOD

CAT 5E Cabling - Outdoor
Part Number Description Color Specification Certification
23200247 DATA CABLE MULTILAN U/UTP CAT 5E 24AWGX4P PE OUTDOOR, 305 METER/BOX RoHS Compliant
ISO 9001, ISO 14001

* Other types of products are available upon request, please contact us.


General Characteristics

Category

5E

Bandwidth

100 Mhz

Application

1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3ab, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.

Type

UTP and FTP

Conductors

4 pairs, 24AWG

Flammability
grade

PVC, CM, CMR, CMX, PE, LSZH

Certifications

ISO 9001, ISO14001,RoHS Compliant, UL, ETL, Anatel

Standards Compliance TIA-568-C.2, ANSI/TIA/EIA-569, ISO/IEC DIS 11801, UL 444

Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
