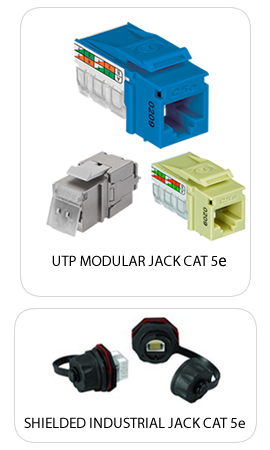

CAT 5E Modular Jack
Part Number Description Color Certification Specification
35030505 UTP MODULAR JACK T568A/B MULTILAN CAT.5E - BLUE RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL Verified
35030501 UTP MODULAR JACK T568A/B MULTILAN CAT.5E - WHITE
35030508 UTP MODULAR JACK T568A/B MULTILAN CAT.5E - RED
35030503 UTP MODULAR JACK T568A/B MULTILAN CAT.5E - BLACK

* Other types of products are available upon request, please contact us.


General Characteristics

Category

5E

Bandwidth

100 Mhz

Application

1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.

Type

UTP and FTP

Connector type

RJ-45

Contacts

Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications

UL Listed, ETL Verified and Channel

Punching

Fast Connector Tool (UTP) and Premium tool (Shielded and CAT.6A)

Insertion cycles

≥750 RJ45 and ≥200 RJ11 y ≥200 in IDC block


Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
