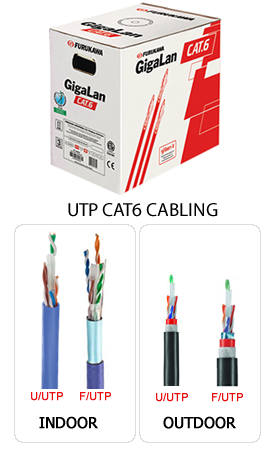

CAT 6 Cabling - Indoor and Outdoor
Part Number Description Color Installation Certification Specification
23400066 DATA CABLE GIGALAN U/UTP CAT 6, 23AWGX4P, CMR, BLUE, 305 METER/BOX INDOOR RoHS Compliant
ISO 9001
ISO 14001
UL Listed
ETL Listed,Verified
ETL 4 Conections
ETL 6 Conections
Anatel
23400021 DATA CABLE GIGALAN U/UTP CAT 6, 23AWGX4P, CMR, GRAY, 305 METER/BOX
23400070 DATA CABLE GIGALAN U/UTP CAT 6, 23AWGX4P, CMR, RED, 305 METER/BOX
23400022 DATA CABLE GIGALAN U/UTP CAT 6, 23AWGX4P, CMR, BLUE, 1,000 METER/ROLL WOOD
23400168 DATA CABLE GIGALAN U/UTP CAT 6, 23AWGX4P, LSZH, GREEN, 305 METER/BOX INDOOR RoHS Compliant
ISO 9001
ISO 14001
ETL Verified
ETL 4 Conections
ETL 6 Conections
23400171 DATA CABLE GIGALAN U/UTP CAT 6, 23/24AWGX4P, PE, OUTDOOR, 305 METER/ROLL PLASTIC OUTDOOR RoHS Compliant
ISO 9001
ISO 14001

* Other types of products are available upon request, please contact us.


General Characteristics

Category

6

Bandwidth

250 MHz

Application

1. Exceeds physical and electrical requirement of ANSI/TIA/EIA-568C.2 standard.
2. The cable is in accordance with RoHS directives (Restriction of Hazardous
Substances)
3. It can be used with the following network standards
c. GIGABIT ETHERNET, IEEE 802.3ab 1000 baseT, IEEE 802.3an 2006;
b. 100BASE-TX, IEEE 802.3u, 100 Mbps;
c. 100BASE-T4, IEEE 802.3u ,100 Mbps;
d. 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e. ATM -155 (UTP), AF-PHY-OO15.000 and AF-PHY-0018.000, 155/51/25 Mbps;
f. TP-PMD , ANSI X3T9.5, 100 Mbps;
g. 10BASE-T, IEEE802.3, 10 Mbps;
h. TOKEN RING, IEEE802.5 , 4/16 Mbps;
i. 3X-AS400, IBM, 10 Mbps;
j. Compatible whit RJ-45 Cat.6 male conector;
k. TSB-155
l. ATM LAN 1.2 Gbit/s, AF-PHY 0162.000 2001;

Type

UTP and FTP

Conductors

4 pairs, 23AWG

Flammability
grade

PVC, CM, CMR, PE, LSZH

Certifications

ISO 9001, ISO14001,RoHS Compliant, UL, ETL, Anatel

Standards Compliance TIA-568-C.2, ANSI/TIA 569, ISO/IEC 11801 and UL 444.

Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
