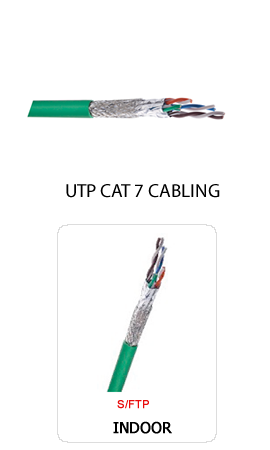

CAT 7 Cabling
Part Number Description Type Certification Specification
23380000

DATA CABLE GIGALAN AUGMENTED CAT.7 S/FTP 23AWGX4P LSZH GRAY 305M

INDOOR RoHS Compliant
ISO 9001, ISO14001
ETL Verified

* Other types of products are available upon request, please contact us.


General Characteristics

Category

7

Bandwidth

600 MHz

Application

1. Exceeds physical and electrical requirements ofANSI/TIA-568-C.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a)     10GIGABIT ETHERNET, IEEE 802.3an, 10 Gbps;
b)     GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
c)     100BASE-TX, IEEE 802.3u, 100 Mbps;
d)     100BASE-T4, IEEE 802.3u ,100 Mbps;
e)     100vg-AnyLAN, IEEE802.12, 100 Mbps;
f)       ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
g)     TP-PMD , ANSI X3T9.5, 100 Mbps;
h)     10BASE-T, IEEE802.3, 10 Mbps;
i)        TOKEN RING, IEEE802.5 , 4/16 Mbps;
j)       3X-AS400, IBM, 10 Mbps;
k)         Support POE+ (in accordance with IEEE 802.3at e TSB-184)
4. Solutions: Data Center, Commercial Building, Government, Financial, Health,
Education.

Type

S/FTP

Conductors

4 pairs, 23AWG

Flammability
grade

LSZH

Certifications

ISO 9001, ISO14001,RoHS Compliant, ETL

Standards Compliance TIA-568-C.2, ANSI/TIA 569, ISO/IEC 11801 and UL 444.

Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
