CAT 6 Modular Plug And Boots Cap
Part Number Description Color   Specification

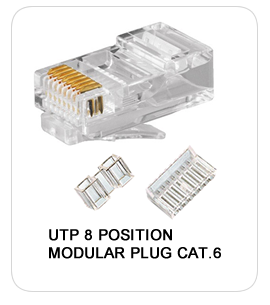

35050282 UTP 8 POSITION MODULAR PLUG CAT.6 RoHS Compliant
ISO 9001, ISO14001
UL Listed
35050033 MODULAR BOOT FOR CATEGORY 5E/6 MALE RJ-45 GRAY
35050034 MODULAR BOOT FOR CATEGORY 5E/6 MALE RJ-45 BLUE
35050038 MODULAR BOOT FOR CATEGORY 5E/6 MALE RJ-45 TRANSPARENT

General Characteristics

Category

6

Bandwidth

250 Mhz

Application

1. Exceeds physical and electrical requirements of EIA/TIA -568-c.2
2. Cable according with RoHS directive (Restriction of Hazardous Substances)
3. Can be used with all of the following protocols.
a) GIGABIT ETHERNET, IEEE 802.3z, 1000 Mbps;
b) 100BASE-TX, IEEE 802.3u, 100 Mbps;
c) 100BASE-T4, IEEE 802.3u ,100 Mbps;
d) 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e) ATM -155 (UTP), AF-PHY-OO15.000 y AF-PHY-0018.000, 155/51/25 Mbps;
f) TP-PMD , ANSI X3T9.5, 100 Mbps;
g) 10BASE-T, IEEE802.3, 10 Mbps;
h) TOKEN RING, IEEE802.5 , 4/16 Mbps;
i) 3X-AS400, IBM, 10 Mbps;
j) POWER OVER ETHERNET, IEEE 802.3af
4. Solutions: Commercial Building, Government, Financial, Health,
Education.
Cable type U/UTP

Material of electrical
contact

8-way phosphor bronze with 100μin (2.54 μm) of nikel and 50μin (1.27 μm) of gold

Connector type

RJ-45

Contacts

Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Conductor diameter

26 up to 22 AWG


Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
