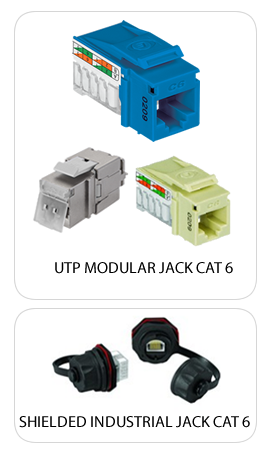

CAT 6 Modular Jack
Part Number Description Color Type Certification Specification
35030605 UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B - BLUE U/UTP RoHS Compliant
ISO 9001, ISO14001
UL Listed
ETL Verified
35030601 UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B - WHITE
35030603 UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B - BLACK
35030608 UTP MODULAR JACK T568A/B GIGALAN CAT.6 T568A/B - RED
35060601 UTP MODULAR JACK T568A/B GIGALAN CAT.6 PREMIUM - WHITE RoHS Compliant
ISO 9001, ISO14001
ETL 4 connections
ETL 6 connections
UL Listed
ETL Verified

* Other types of products are available upon request, please contact us.


General Characteristics

Category

6

Bandwidth

250 Mhz

Application

1. Exceeds physical and electrical requirement of ANSI/TIA/EIA-568C.2 standard.
2. The cable is in accordance with RoHS directives (Restriction of Hazardous
Substances)
3. It can be used with the following network standards
c. GIGABIT ETHERNET, IEEE 802.3ab 1000 baseT, IEEE 802.3an 2006;
b. 100BASE-TX, IEEE 802.3u, 100 Mbps;
c. 100BASE-T4, IEEE 802.3u ,100 Mbps;
d. 100vg-AnyLAN, IEEE802.12, 100 Mbps;
e. ATM -155 (UTP), AF-PHY-OO15.000 and AF-PHY-0018.000, 155/51/25 Mbps;
f. TP-PMD , ANSI X3T9.5, 100 Mbps;
g. 10BASE-T, IEEE802.3, 10 Mbps;
h. TOKEN RING, IEEE802.5 , 4/16 Mbps;
i. 3X-AS400, IBM, 10 Mbps;
j. Compatible whit RJ-45 Cat.6 male conector;
k. TSB-155
l. ATM LAN 1.2 Gbit/s, AF-PHY 0162.000 2001;

Type

UTP and FTP

Connector type

RJ-45

Contacts

Phosphor bronze with 1.27 µm of gold and 2.54 µm of nickel

Certifications

UL Listed, ETL Verified and Channel

Punching

Fast Connector Tool (UTP) and Premium tool (Shielded and CAT.6A)

Insertion cycles

≥750 RJ45 and ≥200 RJ11 y ≥200 in IDC block


Technology Innovation and quality in certified and recognized products.

Copper Twisted Pair


EIA/TIA 568, dated 1991, was the first American standard for structured cabling systems. In 1995, the standard was first amended and was called EIA/TIA 568 A, and in May of 2001, it was transformed into 568 B. A new revision is in force and got the nomenclature ANSI/TIA 568 C2. All these standards were harmonized with the ISO/IEC 11801 standard, amended and updated in 2002. The objective of these standards is to provide a flexible and reliable cabling system, able to be connected with equipment from different manufacturers. Another differential is the easy expansion of an already existing network.




Related Certifications

  Certifications




ETL Verified, ETL Listed and Channel Verified




UL Listed
